Compatible with MC4 4mm Solar Panel Cable Pre-crimped Connectors M/F Pair 1-20m

£3.39£27.19

Clear
SKU: JNMC41M4MMBL-PARENT Categories: ,

Description

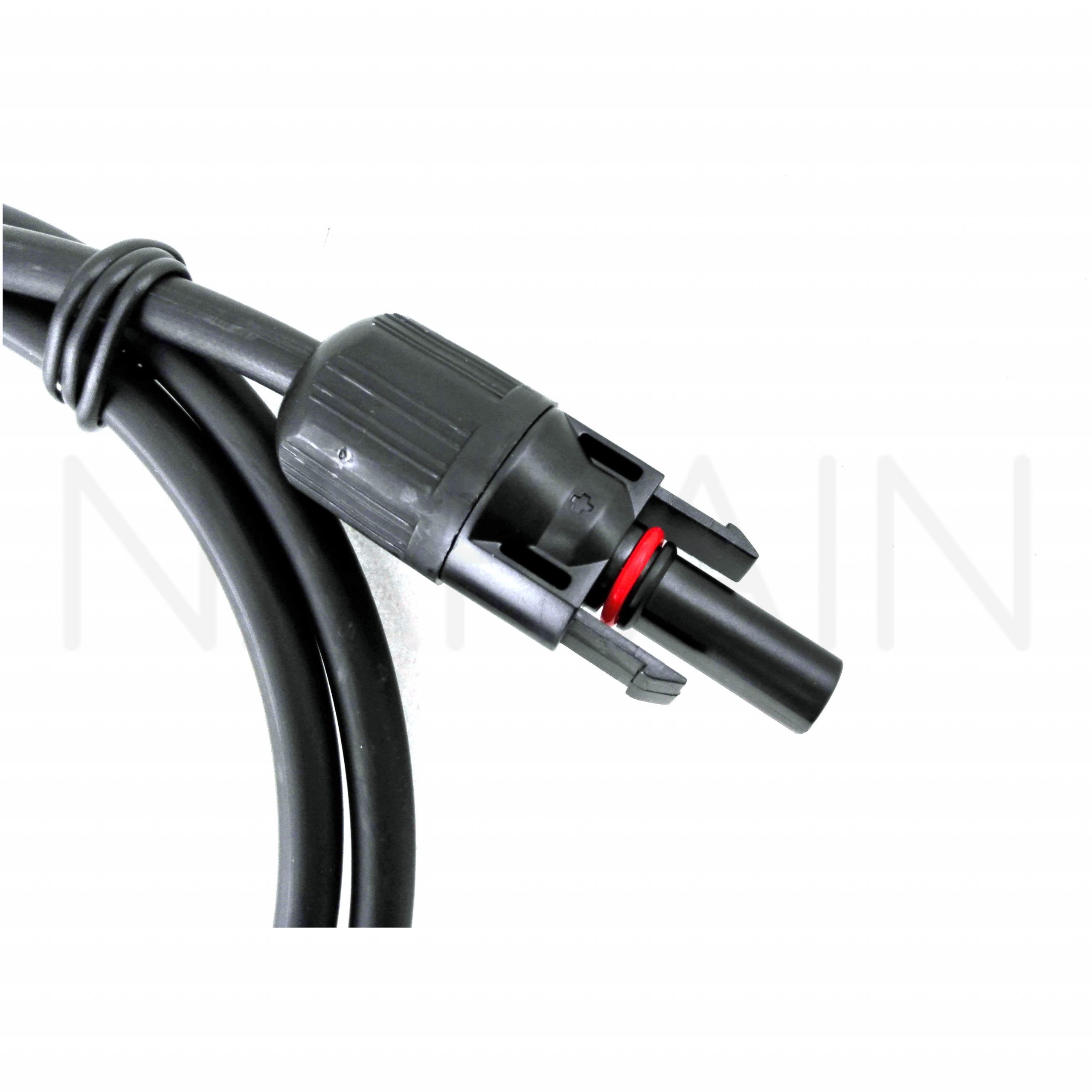

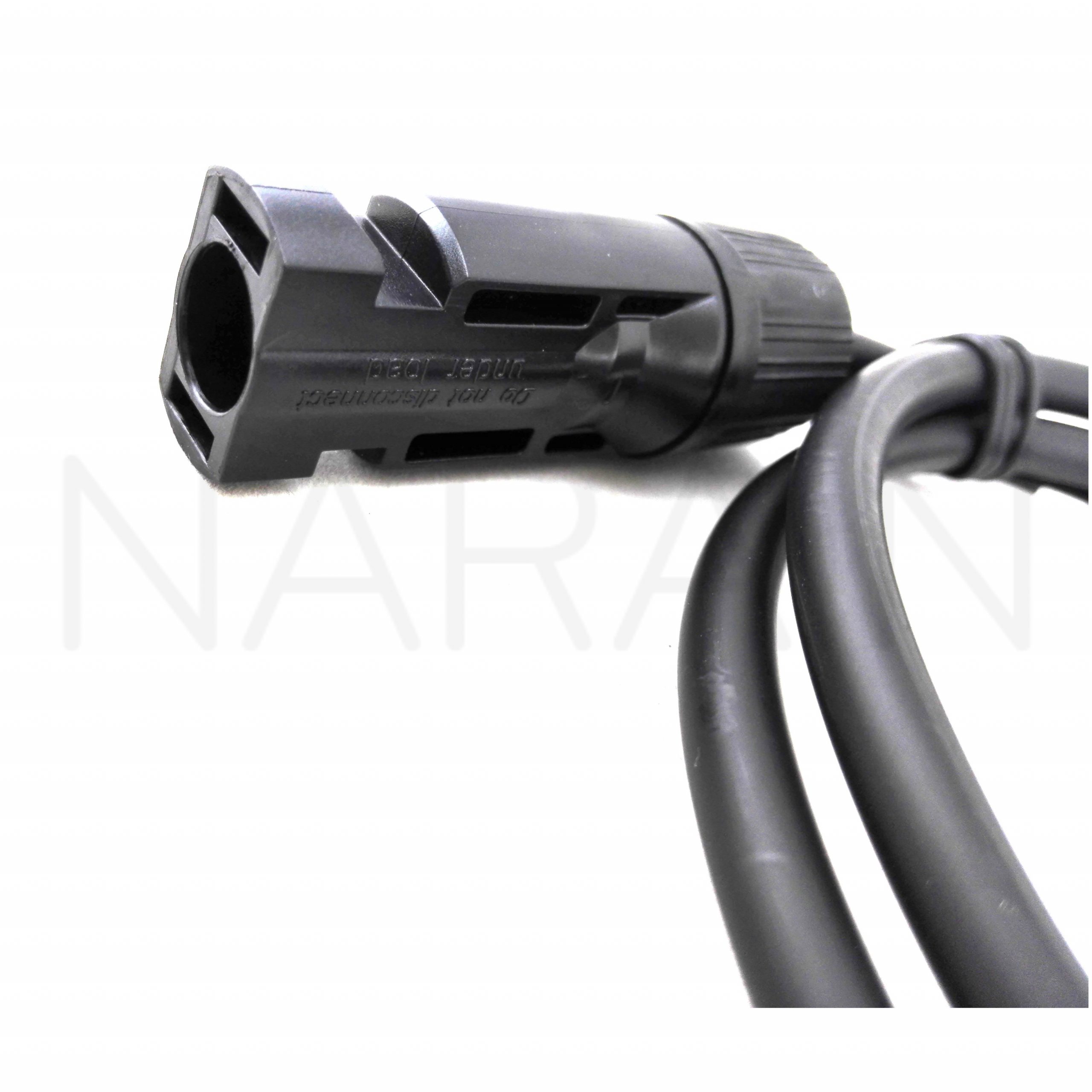

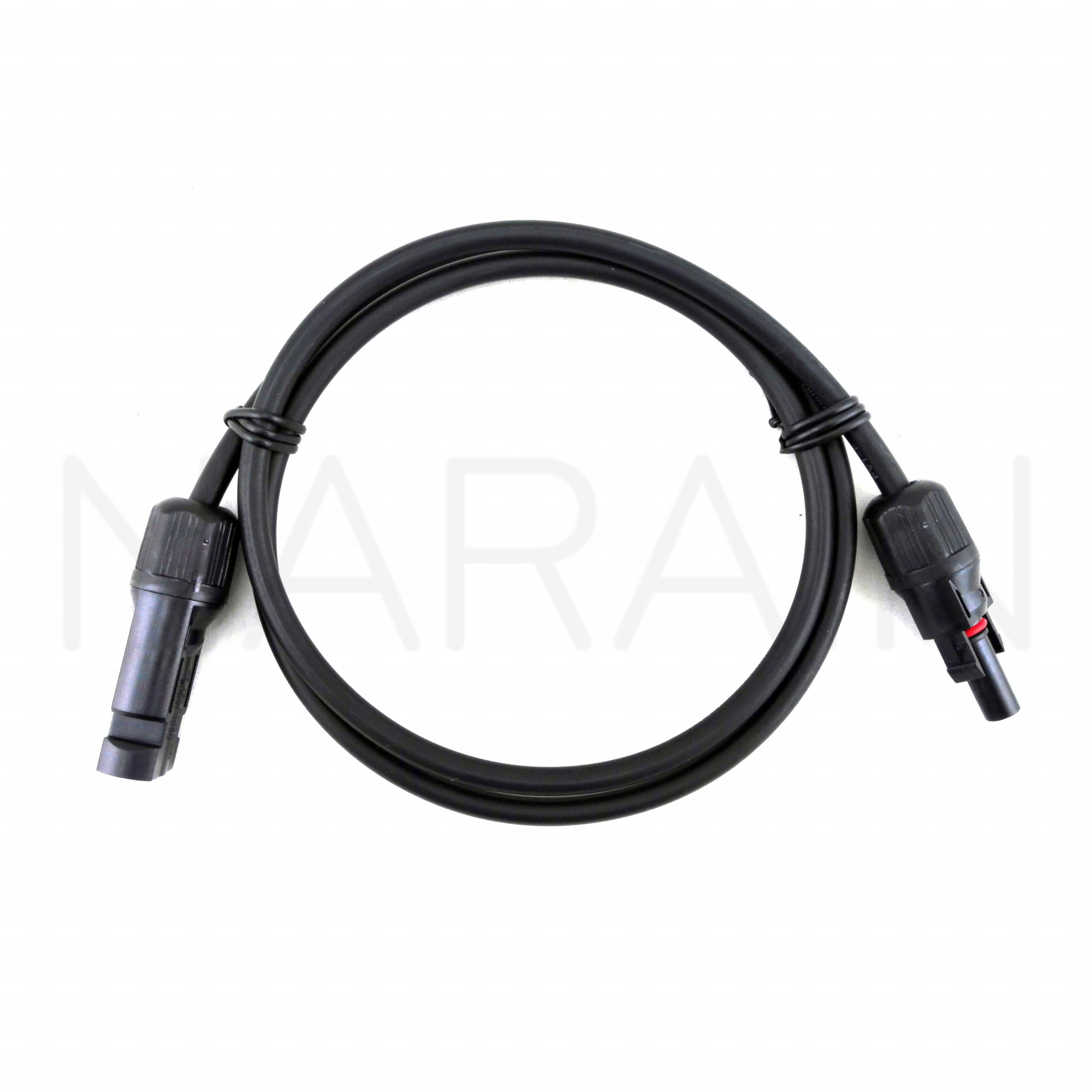

You are buying a compatible with MC4 solar cable connector (1 connector, male & female) (TUV certified) with 1 metre / 2 metres / 5 metres / 8 metres / 10 metres / 15 metres or 25 metres cable of 4mm thickness, (1 cable of various lengths). Pins included.

Solar Cable Spec. –

Size: 4mm thick, various lengths

Conductor: Tinned annealed copper

Insulation: 120°C XLPE, black

Jacket: 120°C XLPE, black, TUV 2PFG

Rated Voltage: 600/1000v at 120°C

Designed for PV installs and extreme weather.

Compatible with MC4 Connector Spec. –

Current: 30A, Max. voltage – 800v, Rated

Protection: IP67 (Complete dust protection & can be submerged into water up to 1M), Single core 2.5mm – 7mm

Ambient Temperature: -40°C to 105°C

Security Level: 2

TPU Shell
